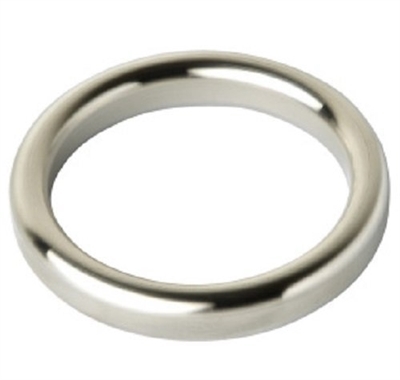

Ring Type Joint - R31 - 316 Stainless Steel - Oval
Ring Type Joint - R31 - 316 Stainless Steel - Oval

Our Price: $24.68
Price Valid Until: 10/6/2024
(Minimum order):  2


Product Code: RTJ-R31-316-OVL
Qty:

Description

The R-Type ring gasket can be ordered to two different profiles, oval or octagonal in cross-sections. Both types have identical pitch diameter as the flange groove they correspond to. These gaskets are used in pressures up to 5,000 PSI. The octagonal type has a higher sealing coefficient than the oval, therefore being the better gasket of the two. The oval type is the only gasket that will fit a bottom radiused groove. Flanges with flat bottom v-grooves will accept either style. Gaskets that have been torqued initiating a metal-to-metal seal should be discarded and not reused.
